WELCOME TO OUR SPECIALIZED DIVISION
NAOMI JEANETTE ROBINSON TRUCKING
1444 Jefferys Road #580
Rocky Mount, NC 27804
Toll Free Phone# (844)415-3410
Office# (252)877-2108
Cell# (252)903-3751
Fax# (252)877-2117
https://www.njrtruckingllc.com

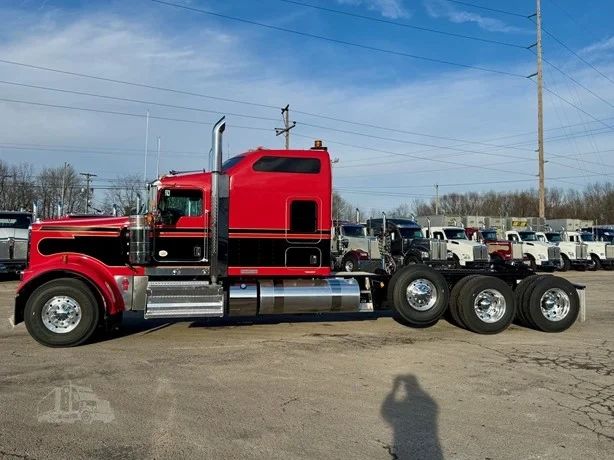

2026 KENWORTH W900L TRI AXLE HEAVY HAUL 315" WHEELBASE & SPECIALIZED TRACTOR FOR HIRE
86" Sleeper
(24,767 lbs. Tare Weight)
Capacities
- Fuel Capacity - 300 gal
- Tires PSI Rating Contact Patch Empty w/10 Tires - 171 psi
- Bobtail Average Weight on w/3 Axles - 8,255.6 lbs.
- Tires PSI Rating Contact Patch Heavy w/12 Tires - 413 psi
- GCVWR (59,500 lbs.) Average Axle Weight w/4 Axles - 14,875 lbs.
- The Furthest the Front of Trailer or Jeep Can be to the Front Bumper - 283" (23.5')
- The Frame Length (Bumper to Bumper) - 391" (32.5')
- The Max. Weight I Can Retrieve in the 72" Sliding 5th Wheel Per Inch - 482 lbs. (+or-)
XL SPECIALIZED XL110 HDE EXTEND-A-TRAC MINI DECK 3+1 Built to Haul Crawler Crane Tracks & Oversize
MINI DECK SHIPPING DIMENSIONS
- Height -20"
- Closed Deck - 24'
- Open Deck - 40'5"
KENWORTH W900L & XL MINI DECK WEIGHT AND MEASURE
KENWORTH W900L TARE WEIGHT - 24,767 lbs.
XL MINI DECK TARE WEIGHT - 23,000 lbs.
KENWORTH W900L TRACTOR
- Front Bumper to Steer Axle - 30" (2.5')
- Steer Axle to Lift Axle - 244" (20.3')
- Lift Axle to Front Drive Axle - 54" (4.5')
- Front Drive to Rear Drive Axles - 54" (4.5')
- Rear Drive to 1st Mini Deck Axle (Closed) - 402" (33.5')
- Rear Drive to 1st Mini Deck Axle (Open) - 589.2" (49.9')
XL SPECIALIZED MINI DECK
- 1st Mini Deck Axle to 2nd Mini Deck Axle - 54" ( 4.5')
- 2nd Mini Deck Axle to 3rd Mini Deck Axle - 54" (4.5')
- 3rd Mini Deck Axle to 4th Flip Axle - 164" (13.6')
- 4th Flip Axle to Rear of Trailer - 30.5" (2.5')
KENWORTH W900L & XL SPECIALIZED XL 110 HDE EXTEND-A-TRAC DIMENSIONS
Length:
- Closed Trailer Total Length - 1,086.5" (90.5')
- Open Trailer Total Length - 1,283.5" (106.9')
- # of Articulate Sections - 3
Route Plan Notes:
Closed Trailer
- Avg. Feet Per Section - 362.1" (30.1')
- Min. Intersection Space Required to Make a Turn - 4 Lane Road (48' x 48' Intersection)
Open Trailer
- Avg. Feet Per Section - 427.8" (35.6')
- Min. Intersection Space Required to Make a Turn - 5 Lane Road (60' x 60' Intersection)
Weights & Measure
- Tractor - 24,767 lbs.
- Trailer - 23,000 lbs.
- GCVW - 47,767 lbs.
- # of Tires - 28
- # of Axles - 8
- # of Axles Group - 4
- PSI Rating: 11.8 lbs. PSI
Closed Trailer
- Avg. Spacing Between Axles Group - 22.6' Spacing Between Axles Group (35'x35' Intersections)
Open Trailer
- Avg. Spacing Between Axles Group - 26.7' Spacing Between Axles Group (40' x 40' Intersections)
NCDOT RATING
- Steer Axle Axle Tire Width & Rating - 20" (10,000 lbs.) at 20,000 lbs
- Lift Axle - 22" (10,000 lbs.) at 20,000 lbs.
- Drives & Trailer - 12.5" (6,250 lbs.)
- Single Axle Axle Tire Width & Rating - 20" (10,000 lbs.) at 20,000 lbs.
AXLES GROUP & NCDOT RATING
- Steer - 20,000 lbs.
- Drives Tridems - 60,000 lbs.
- Mini Deck Tridem - 60,000 lbs.
- Mini Deck Stinger - 20,000 lbs.
- Total NCDOT Weight Allowed Empty or Heavy - 160,000 lbs.
- Axles Permit - 20,000 lbs.
- All Tires Must Be - 10" Min. Width (on duals) 20" Singles
XL SPECIALIZED XL90BM EXTENDABLE BLADE HAULER - Built for North Carolina Wind Farm Parks
WIND BLADE HAULER DIMENSIONS
- Loading Height -51"
- Length - 56'11" to 144'5"
KENWORTH W900L & XL SPECIALIZED XL90BM BLADE HAULER WEIGHT AND MEASURE
KENWORTH W900L TARE WEIGHT - 24,767 lbs.
BLADE HAULER TARE WEIGHT - 33,350 lbs.
KENWORTH W900L TRACTOR
- Front Bumper to Steer Axle - 30" (2.5')
- Steer Axle to Lift Axle - 244" (20.3')
- Lift Axle to Front Drive Axle - 54" (4.5')
- Front Drive to Rear Drive Axles - 54" (4.5')
- Rear Drive to 1st Blade Hauler Axle (Closed) - 408" (34')
- Rear Drive to 1st Blade Hauler Axle (Open) - 1,790" (149.1')
XL SPECIALIZED XL90BM BLADEMATE
- 1st Blademate Axle to 2nd Blademate Axle - 60" (5')
- 2nd Blademate Axle to 3rd Blademate Axle - 60" (5')
- [CLOSED] - 3rd Blademate Axle to Rear of Trailer - 50" (4.1')
- [OPEN] - 3rd Blademate Axle to Rear of Trailer - 290" (24.1')
KENWORTH W900L & XL SPECIALIZED XL 90BM BLADEMATE DIMENSIONS
Length:
- Closed Trailer Total Length - 960" (80')
- Open Trailer Total Length - 2,582" (215.1')
- # of Articulate Sections - 2
Route Plan Notes:
Closed Trailer
- Avg. Feet Per Section - 480" (40')
- Min. Intersection Space Required to Make a Turn - 5 Lane Road (60' x 60' Intersection)
Open Trailer
- Avg. Feet Per Section - 1,291" (107.5')
- Min. Intersection Space Required to Make a Turn - 17,334' of Space To Make a U-Turn
Weights & Measure
- Tractor - 24,767 lbs.
- Trailer - 33,350 lbs.
- GCVW - 58,117 lbs.
- # of Tires - 24
- # of Axles - 7
- # of Axles Group - 3
- PSI Rating: 16.8 lbs. PSI
Closed Trailer
- Avg. Spacing Between Axles Group - 26.6' Spacing Between Axles Group (40'x40' Intersections)
Open Trailer
- Avg. Spacing Between Axles Group - 71.7' Spacing Between Axles Group (108' x 108' Intersections)
NCDOT RATING
- Steer Axle Axle Tire Width & Rating - 20" (10,000 lbs.) at 20,000 lbs
- Lift Axle - 22" (10,000 lbs.) at 20,000 lbs.
- Drives & Trailer - 12.5" (6,250 lbs.)
AXLES GROUP & NCDOT RATING
- Steer - 20,000 lbs.
- Drives Tridems - 60,000 lbs.
- Blademate Tridem - 60,000 lbs.
- Total NCDOT Weight Allowed Empty or Heavy - 140,000 lbs.
- Axles Permit - 20,000 lbs.
- All Tires Must Be - 10" Min. Width (on duals) 20" Singles
TRAIL KING 13-AXLE DOUBLE SCHNABLE SYSTEM - Built for Wind Farm in Carolinas and Modular Homes
13-AXLE DOUBLE SCHNABLE SYSTEMS DIMENSIONS
- Loading Height -51"
Back Haul Configurations
- Length - 80'4"
- Width - 10'
KENWORTH W900L & TRAIL KING 13-AXLE DOUBLE SCHNABLE SYSTEM WEIGHT AND MEASURE
KENWORTH W900L TARE WEIGHT - 24,767 lbs.
DOUBLE SCHNABLE SYSTEM TARE WEIGHT - 50,000 lbs.
KENWORTH W900L TRACTOR
- Front Bumper to Steer Axle - 30" (2.5')
- Steer Axle to Lift Axle - 244" (20.3')
- Lift Axle to Front Drive Axle - 54" (4.5')
- Front Drive to Rear Drive Axles - 54" (4.5')
- Rear Drive to 1st Jeep Axle - 189.6" (15.8')
TRAIL KING DOUBLE SCHNABLE SYSTEM
- 1st Jeep Axle to 2nd Jeep Axle - 60" (5')
- 2nd Jeep Axle to 3rd Jeep Axle - 60" (5')
- 3rd Jeep Axle to 1st Front Steer Axle - 96" (8')
- 1st Front Steer Axle to 2nd Front Steer Axle - 60" (5')
- 2nd Front Steer Axle to 3rd Front Steer Axle - 60" (5')
- 3rd Front Steer to 4th Front Steer Axle - 175" (14.5')
- 4th Front Steer Axle to 5th Front Steer Axle - 60" (5')
- 5th Front Steer Axle to 6th Front Steer Axle - 60" (5')
- 6th Front Steer Axle to End of Trailer - 36" (3')
KENWORTH W900L & TRAIL KING13-AXLE DOUBLE SCHNABLE SYSTEM DIMENSIONS
Length:
- Tractor & Trailer Total Length - 1,238.6" (103')
- # of Articulate Sections - 4
Route Plan Notes:
- Avg. Feet Per Section - 309.65" (25.8')
- Min. Intersection Space Required to Make a Turn - 5 Lane Road (40 x 40' Intersection)
Weights & Measure
- Tractor - 24,767 lbs.
- Trailer - 50,000 lbs.
- GCVW - 74,767 lbs.
- # of Tires - 48
- # of Axles - 13
- # of Axles Group - 5
- PSI Rating: 10.8 lbs. PSI
Back Haul Configuration Trailer
- Avg. Spacing Between Axles Group - 20.6' Spacing Between Axles Group (36'x36' Intersections)
NCDOT RATING
- Steer Axle Axle Tire Width & Rating - 20" (10,000 lbs.) at 20,000 lbs
- Lift Axle - 22" (10,000 lbs.) at 20,000 lbs.
- Drives & Trailer - 12.5" (6,250 lbs.)
AXLES GROUP & NCDOT RATING
- Steer - 20,000 lbs.
- Drives Tridems - 60,000 lbs.
- Jeep Tridem - 60,000 lbs.
- Front Steer Tridem - 60,000 lbs.
- Rear of Front Steer Tridem - 60,000 lbs.
- Total NCDOT Weight Allowed Empty or Heavy - 260,000 lbs.
- Axles Permit - 20,000 lbs.
- All Tires Must Be - 10" Min. Width (on duals) 20" Singles
LIEBHERR LTM-1750 9.1 SHIPPING LIMITATIONS
900-TON HYDRAULIC CRANE TRANSPORTING AND ASSEMBLING REQUIREMENT
900-TON HYDRAULIC CRANE SHIPPING LIMITATIONS
LIEBHERR LTM 1750 9.1 HYDRAULIC 900 TON CRANE SPACING
- Front Bumper to 1st Axle - 104" (8'11")
- 1st Axle to 2nd Axle - 63" (5'3)
- 2nd Axle to 3rd Axle - 63" (5'3")
- 3rd Axle to 4th Axle - 85" (7'1")
- 4th Axle to 5th Axle - 63" (5'3")
- 5th Axle to 6th Axle - 65" (5'5")
- 6th Axle to 7th Axle - 133" (11'1")
- 7th Axle to 8th Axle - 134" (11'2")
- 8th Axle to 9th Axle - 63" (5'3")
- 9th Axle to Rear Bumper - 51" (4'3")
OPERATING ON ROAD DIMENSIONS
- Height - 157" (13'1")
- Width - 122" (10'2")
- Length - 856" (71'4")
JOBSITE DRIVING TOTAL WEIGHT - 308,000 lbs.
JOBSITE DRIVING WITHOUT PARTS OR ACCESSORIES:
- OPTION #1 - Without Rear Stabilizers Arm and Wings - 238,000 lbs.
- OPTION #2 - Option#1 + No Front Stabilizers Arms - 216,000 lbs.
- OPTION #3 - Option#1 + Option #2 + No Boom and Hook Block - 139,000 lbs.
- OPTION #4 - Option #1 + Option #2 + Option #3 + No Hydraulic Piston - 128,000 lbs.
LIEBHERR LTM 1750 9.1 HYDRAULIC CRANE OPTIMIZED FOR TRANSPORTATION
Crane Body Height
- Height Without Boom - 133" (13'1")
- Height Without Crane Operating Cab and Arm - 116" (9'8")
Boom - 77,000 lbs. (L x W x H)
(2) Hydraulic Pistons - 11,000 lbs. (L x W x H)
Luffing Jib 203' Total
- (1) F-20 Luffing Jib Part - 0.0 lbs. (20'L x 7'7"W x 5'11"H)
- (11) TF-Adapter Jib Parts - 0.0 lbs. (11'6"L x 7'7"W x 5'11")
Auxiliary Jib 320' Total
- (7) 47'7"L x 7'7"W x 5'11"
FOLDING OUTRIGGERS FRONT WITH COUNTERWEIGHT
- Amount - 2
- Total Weight - 59,515 lbs.
FOLDING OUTRIGGERS REAR WITH COUNTERWEIGHT
- Dimensions - 7'2" Width x 7'5" Height
- Amount - 2
- Total Weight - 59,515 lbs.
BASE PLATE w/ERECTION PLATFORM
- Dimensions - 23'6" Length x 7'10" Width x 3'4" Height
- Amount - 1
- Total Weight -25,575 lbs.
BALLAST FRAME WITH WINCH 2, WINCH 3, ADJUSTMENT BLOCK AND ENGINE
- Dimensions - 13'8 Length x 9'7" Width x 9'7" Height
- Amount - 1
- Total Weight - 52,030 lbs.
COUNTER WEIGHTS
- Amount - 22
- Total Weight - 449,700 lbs.
900-TON HYDRAULIC CRANE SHIPPING PARTS
900-TON HYDRAULIC CRANE SHIPPING LIMITATIONS
FOLDING OUTRIGGERS FRONT WITH COUNTERWEIGHT
- Amount - 2
- Total Weight - 59,515 lbs.
FOLDING OUTRIGGERS REAR WITH COUNTERWEIGHT
- Dimensions - 7'2" Width x 7'5" Height
- Amount - 2
- Total Weight - 59,515 lbs.
BASE PLATE w/ERECTION PLATFORM
- Dimensions - 23'6" Length x 7'10" Width x 3'4" Height
- Amount - 1
- Total Weight -25,575 lbs.
BALLAST FRAME WITH WINCH 2, WINCH 3, ADJUSTMENT BLOCK AND ENGINE
- Dimensions - 13'8 Length x 9'7" Width x 9'7" Height
- Amount - 1
- Total Weight - 52,030 lbs.
COUNTER WEIGHTS
- Amount - 22
- Total Weight - 449,700 lbs.
CRANE BODY TRANSPORT DIVISION
- Handling Division - Superload Division
- Trailer Transporting - Cozad 110-Ton Lowboy
CRANE BOOM TRANSPORT DIVISION
- Handling Division - Specialized Division
- Trailer Transporting - XL Specialized HDE 110 Extend-a-Trac with Rear Steering
CRANE FEONT OUTRIGGERS & COUNTERWEIGHT DIVISION
- Handling Division - General Freight Division
- Trailer Mac MFG Trailer Tried Axle Step Deck
CRANE REAR OUTRIGGERS & CONTER WEIGHT DIVISION
- Handling Division - General Freight Division
- Trailer Mac MFG Trailer Tried Axle Step Deck
CRANE BASE PLATE W/ERECTION PLATFORM DIVISION
- Handling Division - General Freight Division
- Trailer Mac MFG Trailer Tried Axle Step Deck
CRANE BALLAST FRAMEW/WINCH#2 AND WINCH#3 ADJUSTMENT BLOCK& ENGINE
- Handling Division - General Freight Division
- Trailer Landoll 455B Traveling Axle Tridem Axle Trailer
HYDRAULIC CRANE TRANSPORT DIRECTIONS FROM PORT NEWARK, NJ TO 3047 BASS LANDING ROAD IN EDENTON, NORTH CAROLINA
Round Trip Amount - 2
- One Way Mileage - Not Known
- Driving Hours - 5 Hours One Way
- Days to Complete - 0.0 Days
- Hours to Complete - 0.0 Operating Hours
- Total Mileage - 0.0 Miles
- Payout - $0.0 to Delivering Carrier
- Hourly Rate - $0.00 per Hour of Service
- Daily Rate - $0.00
Ballast Frame with Winch#2, Winch#3 Adjustment Block and Engine for Liebherr LTM1750-9.1 Hydraulic Crane
SHIPMENT
JOBSITE DRIVING WITHOUT PARTS OR ACCESSORIES:
- OPTION #4 - Option #1 + Option #2 + Option #3 + No Hydraulic Piston - 128,000 lbs.
LIEBHERR LTM 1750 9.1 HYDRAULIC CRANE OPTIMIZED FOR TRANSPORTATION
Crane Body Height
- Height Without Boom - 133" (13'1")
- Height Without Crane Operating Cab and Arm - 116" (9'8")
Boom - 77,000 lbs. (L x W x H)
Trailer Request - Faymonville Street Max. FBX 11' Deck Height w/Interchangeable Decks
- Amount of Trips- 1
Hydraulic Piston for Liebherr LTM1750-9.1 Hydraulic Crane
SHIPMENT
JOBSITE DRIVING WITHOUT PARTS OR ACCESSORIES:
JOBSITE DRIVING WITHOUT PARTS OR ACCESSORIES:
- OPTION #2 - Option#1 + No Front Stabilizers Arms - 216,000 lbs.
LIEBHERR LTM 1750 9.1 HYDRAULIC CRANE OPTIMIZED FOR TRANSPORTATION
Crane Body Height
- Height Without Boom - 133" (13'1")
- Height Without Crane Operating Cab and Arm - 116" (9'8")
Boom - 77,000 lbs. (L x W x H)
Hydraulic Piston for Liebherr LTM1750-9.1 Hydraulic Crane
SHIPMENT
BASE PLATE w/ERECTION PLATFORM
- Dimensions - 23'6" Length x 7'10" Width x 3'4" Height
- Amount - 1
- Weight -25,575 lbs..
Trailer Request - XL Specialized xl110 HDE Extend-A-Trac Mini Deck
- Amount of Trips- 1
SPECIALIZED SHIPPING TRACTOR SHIPPING LIMITATIONS
SPECIALIZED SHIPPING LIMITATIONS DUE TO OUR EQUIPMENT INVENTORY
HOW MUCH WEIGHT ARE YOU AIMING AT AS A RANDOM MOVE FOR YOUR SETUP
EQUIPMENT OR WEIGHT CLASS MACHINERY
Liebherr LTM1750 - Entire Crane and Parts Shipping Requirements
- Operation Weight - 238,100 lbs.
- Counter Weights - 449,700 lbs.
- Total Weight To Move - 687,800 lbs.
TRIDEM AXLE TRACTOR - 59,500 lbs. (59.5k GVWR)
Tridem Axle Trailer - 59.5k +68k = 127,500 lbs. GVCWR (18k Permits per Axle)
- Max. Weight to Stay Under 80,000 lbs. - 39,000 lbs.
- Max. Shipment Weight Under Max. Permit Axle - 86,500 lbs.
- Max. Tare Weight for the Tridem Axle Trailer - 15,000 lbs.
- Max. Tare Weight for the Tractor - 26,000 lbs.
- Purpose - Counterweight for Crane and Luffing Jib Parts - Then Leased to N.J.R. Logistics Group Brokering Division
Quad Axle Trailer -- 59.5k +88k = 147,500 lbs. GVCWR (18k Permits per Axle)
- Max. Weight to Stay Under 80,000 lbs. - 26,000 lbs.
- Max. Shipment Weight Under Max. Permit Axle - 90,000 lbs.
- Max. Tare Weight for the Quad Axle Trailer - 28,000 lbs.
- Max. Tare Weight for the Tractor - 26,000 lbs.
- Purpose - Counterweight for Crane and Luffing Jib Parts - Then Leased to N.J.R. Logistics Group Brokering Division
9th Axle Trailer Setup - 59.5k +188k = 247,500 lbs. GVCWR (19k Permits per Axle)
- Max. Weight to Stay Under 80,000 lbs. - Permit Required to Move
- Max. Shipment Weight Under Max. Permit Axle - 165,500 lbs.
- Max. Tare Weight for the Nine Axle Trailer - 56,000 lbs.
- Max. Tare Weight for the Tractor - 26,000 lbs.
- Purpose - Crane Boom & Parts - Then Leased to N.J.R. Logistics Group Brokering Division
LANES
- Coast to Coast
- Preferred Route of Travel From
- Anywhere in Lower 48 States and Southern Canada
CONTRACTS
- N.J.R. Logistics Group
- JOBSITE DRIVING WITHOUT PARTS OR ACCESSORIES - We chosen a Tridem Axle Tractor for our Specialized Setup for a Hydraulic Crane Bid.
- It is better for both parties that we choose OPTION #4 our only trailer in our inventory that is capable is our Mini Deck 3+1 and our max. weight for our flat division is 90,000 lbs. then we turn to heavy haul division.
- This division is not designed for 90,000 + lbs. on a flat deck trailer as our structure.
- The wheelbase of the crane brings concentration and my full attention. Our Mini Deck only opens to 50' in total open length. We have no way of extended the well to meet your demand
- We can not equipped to handle this shipment as the crane body carrier not in Specialized Division
- We would like to take two boom Sections of Luffing Jib. We have a rear Steer though.
900-TON HYDRAULIC CRANE SHIPPING LIMITATIONS
LIEBHERR LTM 1750 9.1 HYDRAULIC 900 TON CRANE SPACING
- Front Bumper to 1st Axle - 104" (8'11")
- 1st Axle to 2nd Axle - 63" (5'3)
- 2nd Axle to 3rd Axle - 63" (5'3")
- 3rd Axle to 4th Axle - 85" (7'1")
- 4th Axle to 5th Axle - 63" (5'3")
- 5th Axle to 6th Axle - 65" (5'5")
- 6th Axle to 7th Axle - 133" (11'1")
- 7th Axle to 8th Axle - 134" (11'2")
- 8th Axle to 9th Axle - 63" (5'3")
- 9th Axle to Rear Bumper - 51" (4'3")
OPERATING ON ROAD DIMENSIONS
- Height - 157" (13'1")
- Width - 122" (10'2")
- Length - 856" (71'4")
JOBSITE DRIVING TOTAL WEIGHT - 308,000 lbs.
JOBSITE DRIVING WITHOUT PARTS OR ACCESSORIES:
- OPTION #1 - Without Rear Stabilizers Arm and Wings - 238,000 lbs.
- OPTION #2 - Option#1 + No Front Stabilizers Arms - 216,000 lbs.
- OPTION #3 - Option#1 + Option #2 + No Boom and Hook Block - 139,000 lbs.
- OPTION #4 - Option #1 + Option #2 + Option #3 + No Hydraulic Piston - 128,000 lbs.
EQUIPMENT OR WEIGHT CLASS MACHINERY
HOW MANY AXLES ARE YOU AIMING AT AS A HYDRAULIC CRANE TRANSPORTER?
Tridem Axle Tractor w/Mini Deck 3+1 with Rear Steer and is Extendable is Specialized Equipment Pertaining to Crane Move
EQUIPMENT OR WEIGHT CLASS MACHINERY
Liebherr LTM1750 - Entire Crane and Parts Shipping Requirements
- Operation Weight - 238,100 lbs.
- Counter Weights - 449,700 lbs.
- Total Weight To Move - 687,800 lbs..
- Total Axles Required - 50
TRAILER PREFEERED FOR SPECIALIZED TRANSPORT - XL Specialized XL110 HDE Extend-A-Trac 3+1 w/Rear Steer
- Capacity - 147,500 lbs.
- Shipment Max. Weight - 90,000 lbs.
- Deck Height - 20"
- Deck Length - 29' to 50'4"'
- Deck Width - 8.5'
CUBIC FEET OF CAPACITY WITHOUT HEIGHT PERMITS OR POLE CAR
- Cubic Inches - 5,040,432 to 8,748,336 cu. inches
- Cubic Feet - 2,908 to 5,045 cu. feet
- Cubic Yards - 107 to 186 cu. yards
- Max. PSI Rating - 36.5 lbs. PSI
MAX. PERMIT AXLE
- Avg. Axle permit - 18k
- Has Capability of 20k axles if needed (160,000 lbs. Leeway)
SPECIALIZED TRANSPORT DIRECTIONS TO 3047 BASS LANDING ROAD IN EDENTON, NORTH CAROLINA
Round Trip Amount - 12
- One Way Mileage - 422
- Driving Hours - 7 Hours One Way
- Days to Complete - 21 Days
- Hours to Complete - 294 Operating Hours
- Total Mileage - 10,128 Miles
- Payout - $32,837.04 to Delivering Carrier
- Hourly Rate - $111.69 per Hour of Service
- Daily Rate - $1,563.66
ROUTE PLAN REQUIREMENTS SEND TO STRUCTURAL ENGINEER FOR APPROVAL
- Total Length - 90.5'
- Total Width - 8.5'
- Total Height - 111" Shipment (Stacks 12')
- Total Weight - 73,342 lbs.
- Total Axles - 7 Axles
- Total Axles Spacing - 1,025" (85.4')
- Weight Per Foot (Axle Spacing) - 810 lbs. per foot
- Axle Permit Requirement - 11,000 lbs. per axle
- Spacing Between Axle Group - 28' Spacing
- Spacing for DOT Requirement - 34,468 lbs. between Axle Group @ 28' Spacing
- Min. Bridge Crossing Between Axles - 46,778 lbs.
- Intersection Requirement - 46'' x 46' Intersection Box
- Bridge Side Columns & Utility Poles Distance Away From Road - @ 12' Tall I Need Utility Poles & Bridge Columns 18" Off Edge of Road
DIRECTIONS FOR FUEL REBATES:
- Depart Port Newark to Interstate- 78 West (Newark, NJ)
- Interstate-78 West for Sea Port (Bridgewater, NJ)
- Take Interstate-278 South (Edison, NJ)
- Take U.S. Route-1 South (Lawrenceville, NJ)
- Take Interstate-295 South (Wilmington, DE)
- Take U.S. Route-13 South (Laurel, DE - Oasis Travel Plaza - Fuel Rebates)
- Take U.S. Route-13 South (Norfolk, VA)
- Take U.S. Route-17 South (South Mills, NC)
- Make Right Unto Turnpike Road (Whitestone, NC)
- Make Left Unto Sandy Cross Road (Belvidere, NC)
- Make Right Unto Bay Branch Road (Belvidere, NC)
- Make Right Unto Drinking Hole Road NC-Route-37 (Ryland, NC)
- Continue on Ryland Rd (Tyner, NC)
- Make Left unto Virginia Road NC Route-32 (Arrowhead Beach, NC)
- Make Right unto Rocky Hock Road (Arrowhead Beach, NC)
- Continue on River Road (Rockyhock, NC)
- Make Left unto Rocky Hock Landing Road (Edenton, NC)
- Make Right unto Sandy Wood Lane (Edenton, NC)
- Make Left unto Bass Landing Road (Arrive at 3047 Bass Landing Road on left)
Luffing Jib for Liebherr LTM1750-9.1 Hydraulic Crane
SHIPMENT
Luffing Jib 203' Total
- (1) F-20 Luffing Jib Part - 5,000 lbs. (20'L x 7'7"W x 5'11"H)
SHIPMENT
- (11) TF-Adapter Jib Parts -55,000 lbs. (11'6"L x 7'7"W x 5'11")
Trailer Request - XL Specialized xl110 HDE Extend-A-Trac Mini Deck
- Amount of Trips- 4
Hydraulic Piston for Liebherr LTM1750-9.1 Hydraulic Crane
SHIPMENT
Auxiliary Jib 320' Total
- (7) 47'7"L x 7'7"W x 5'11"
Trailer Request - Extreme XP55 Flatbed
- Weight - 5,000 lbs. x 7 = 35,000 lbs.
Trailer Request - XL Specialized xl110 HDE Extend-A-Trac Mini Deck
- Amount of Trips- 7
Hydraulic Piston for Liebherr LTM1750-9.1 Hydraulic Crane
SHIPMENT
BASE PLATE w/ERECTION PLATFORM
- Dimensions - 23'6" Length x 7'10" Width x 3'4" Height
- Amount - 1
- Weight -25,575 lbs..
Trailer Request - XL Specialized xl110 HDE Extend-A-Trac Mini Deck
- Amount of Trips- 1
