WELCOME TO OUR GENERAL FREIGHT DIVISION
NAOMI JEANETTE ROBINSON TRUCKING
1444 Jefferys Road #580
Rocky Mount, NC 27804
Toll Free Phone# (844)415-3410
Office# (252)877-2108
Cell# (252)903-3751
Fax# (252)877-2117
https://www.njrtruckingllc.com

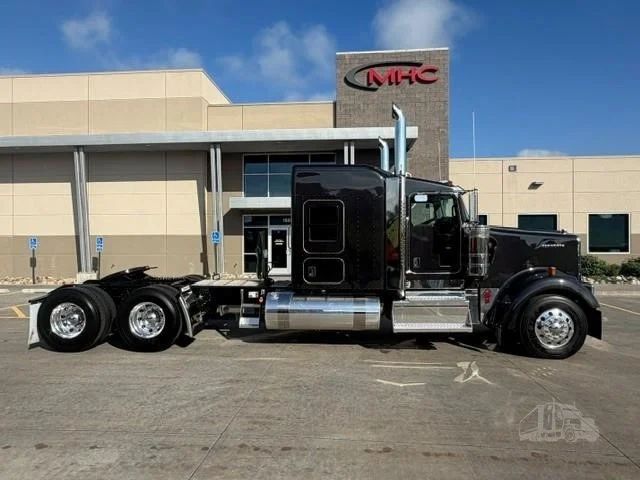

2027 KENWORTH W900 TANDEM AXLE GENERAL FREIGHT 280" WHEELBASE GENERAL FREIGHT & LOGISTICS TRACTOR FOR HIRE
72" Flat Top Sleeper
(21,750 lbs. Tare Weight)
Capacities
- Fuel Capacity - 300 gal
- Tires PSI Rating Contact Patch Empty w/10 Tires - 15 psi
- Bobtail Average Weight on w/3 Axles - 7,250 lbs.
- Tires PSI Rating Contact Patch Heavy w/10 Tires - 36 psi
- GCVWR (53,000 lbs.) Average Axle Weight w/3 Axles - 17,666 lbs.
- The Furthest the Front of Trailer or Jeep Can be to the Front Bumper - 269" (22.4')
- The Frame Length (Bumper to Bumper) - 340" (28.3')
- The Max. Weight I Can Retrieve in the 36" Sliding 5th Wheel Per Inch - 868 lbs. (+or-)
EXTREME XP55 FLATBED 48' x 102" w/10'2" SPREAD AXLE - Designed to Haul Building Materials
FLATBED SHIPPING DIMENSIONS
- Floor Height -51"
- Length - 48'
- Width - 8.5'"
KENWORTH W900L & EXTREME XP55 FLATBED WEIGHT AND MEASURE
KENWORTH W900L TARE WEIGHT - 21,750 lbs.
FLATBED TARE WEIGHT - 8,100 lbs.
KENWORTH W900L TRACTOR
- Front Bumper to Steer Axle - 30" (2.5')
- Steer Axle to Front Drive Axle - 253" (21')
- Front Drive to Rear Drive Axles - 54" (4.5')
EXTREME FLATBED 48' x 102" SPREAD AXLE TRAILER
- Rear Drive to 1st Spread Axle - 377" (31.4')
- 1st Spread to 2nd Spread Axle - 121" (10')
- 2nd Spread to Rear of Trailer - 27" (2.25')
KENWORTH W900L & EXTREME XP55 SPREAD AXLE FLATBED DIMENSIONS
Length:
- Tractor & Trailer Total Length - 859.8" (71.65')
- # of Articulate Sections - 2
Route Plan Notes:
- Avg. Feet Per Section - 429.9" (35.8')
- Min. Intersection Space Required to Make a Turn - 4 Lane Road (54' x 54' Intersection)
Weights & Measure
- Tractor - 21,750 lbs.
- Trailer - 8,100 lbs.
- GCVW - 29,850 lbs.
- # of Tires - 18
- # of Axles - 5
- # of Axles Group - 4
- PSI Rating: 35 lbs. PSI
Tractor & Trailer
- Avg. Spacing Between Axles Group - 17.9' Spacing Between Axles Group (27'x27' Intersections)
NCDOT RATING
- Steer Axle Axle Tire Width & Rating - 13" (6,500 lbs.) at 13,000 lbs.
- Drives & Trailer - 12.5" (6,250 lbs.)
AXLES GROUP & NCDOT RATING
- Steer - 13,000 lbs.
- Drives Tandem - 40,000 lbs.
- Single Axle Front - 20,000 lbs.
- Single Axle Rear - 20,000 lbs.
- Total NCDOT Weight Allowed Empty or Heavy - 93,000 lbs.
- Axles Permit - 18k pounds
- All Tires Must Be - 10" Min. Width (on duals) 13" Singles
MAC TRAILER MFG 48' x 102" ALL ALUMINUM TRIDEM AXLE STEP DECK - Designed to Haul Agriculture and Small Construction Equipment
STEP DECK SHIPPING DIMENSIONS
- Floor Height -36"
- Length - 48'
- Width - 8.5'"
KENWORTH W900L & MAC TRAILER MFG 48' x 102" ALL ALUMINUM TRIDEM STEP DECK WEIGHT AND MEASURE
KENWORTH W900L TARE WEIGHT - 21,750 lbs.
STEP DECK TARE WEIGHT - 13,500 lbs.
KENWORTH W900L TRACTOR
- Front Bumper to Steer Axle - 30" (2.5')
- Steer Axle to Front Drive Axle - 253" (21')
- Front Drive to Rear Drive Axles - 54" (4.5')
MAC TRAILER MFG 48' x 102" TRIDEM AXLE STEP DECK TRAILER
- Rear Drive to 1st Tridem Axle - 377" (31.4')
- 1st Tridem Axle to 2nd Tridem Axle - 60" (5')
- 2nd Tridem Axle to 3rd Tridem Axle - 60" (5')
- 3rd Tridem to Rear of Trailer - 27" (2.25')
KENWORTH W900L & MAC TRAILER MFG 48' x 102" ALL ALUMINUM STEP DECK DIMENSIONS
Length:
- Tractor & Trailer Total Length - 859.8" (71.65')
- # of Articulate Sections - 2
Route Plan Notes:
- Avg. Feet Per Section - 429.9" (35.8')
- Min. Intersection Space Required to Make a Turn - 4 Lane Road (54' x 54' Intersection)
Weights & Measure
- Tractor - 21,750 lbs.
- Trailer - 13,500 lbs.
- GCVW - 35,250 lbs.
- # of Tires - 22
- # of Axles - 6
- # of Axles Group - 3
- PSI Rating: 35 lbs. PSI
Tractor & Trailer
- Avg. Spacing Between Axles Group - 23.8' Spacing Between Axles Group (36'x36' Intersections)
NCDOT RATING
- Steer Axle Axle Tire Width & Rating - 13" (6,500 lbs.) at 13,000 lbs.
- Drives & Trailer - 12.5" (6,250 lbs.)
AXLES GROUP & NCDOT RATING
- Steer - 13,000 lbs.
- Drives Tandem - 40,000 lbs.
- Tridem Axle Trailer - 60,000 lbs.
- Total NCDOT Weight Allowed Empty or Heavy - 113,000 lbs.
- Axles Permit - 18k pounds
- All Tires Must Be - 10" Min. Width (on duals) 13" Singles
MAC TRAILER MFG 48' x 102" TARP SYSTEM w/4 AXLE FLATBED TRAILER - Built to Handle 10,000 lbs. forklifts on Logistics
TARP AND ENCLOSED CARGO SHIPPING DIMENSIONS
- Floor Height - 51"
- Interior Height - 102.5"
- Length - 53'
- Width - 9'
KENWORTH W900L & MAC TRAILER MFG 53' x 108" ALL ALUMINUM QUAD AXLE TARP SYSTEM WEIGHT AND MEASURE
KENWORTH W900L TARE WEIGHT - 21,750 lbs.
QUAD AXLE TARP SYSTEM TARE WEIGHT - 16,000 lbs.
KENWORTH W900L TRACTOR
- Front Bumper to Steer Axle - 30" (2.5')
- Steer Axle to Front Drive Axle - 253" (21')
- Front Drive to Rear Drive Axles - 54" (4.5')
MAC TRAILER MFG 53' x 108" QUAD AXLE TARP SYSTEM TRAILER
- Rear Drive to 1st Quad Axle - 249" (20.75')
- 1st Quad Axle to 2nd Quad Axle - 108" (9')
- 2nd Quad Axle to 3rd Quad Axle - 72" (6')
- 3rd Quad Axle to 4th Quad Axle - 72" (6')
- 4th Quad Axle to Rear of Trailer - 60" (5')
KENWORTH W900L & MAC TRAILER MFG 53' x 108" ALL ALUMINUM QUAD AXLE CURTAIN SIDE TRAILER DIMENSIONS
Length:
- Tractor & Trailer Total Length - 897" (74.75')
- # of Articulate Sections - 2
Route Plan Notes:
- Avg. Feet Per Section - 448.5" (37.3')
- Min. Intersection Space Required to Make a Turn - 4 Lane Road (56' x 56' Intersection)
Weights & Measure
- Tractor - 21,750 lbs.
- Trailer - 16,000 lbs.
- GCVW - 37,750 lbs.
- # of Tires - 24
- # of Axles - 7
- # of Axles Group - 4
- PSI Rating: 38 lbs. PSI
Tractor & Trailer
- Avg. Spacing Between Axles Group - 18.6' Spacing Between Axles Group (29'x29' Intersections)
NCDOT RATING
- Steer Axle Axle Tire Width & Rating - 13" (6,500 lbs.) at 13,000 lbs.
- Drives & Trailer - 12.5" (6,250 lbs.)
AXLES GROUP & NCDOT RATING
- Steer - 13,000 lbs.
- Drives Tandem - 40,000 lbs.
- Single Axle Under Trailer - 20,000 lbs.
- Tridem Axle Under Trailer - 60,000 lbs.
- Total NCDOT Weight Allowed Empty or Heavy - 133,000 lbs.
- Axles Permit - 19k pounds
- All Tires Must Be - 10" Min. Width (on duals) 13" Singles
LIEBHERR LTM-1750 9.1 SHIPPING LIMITATIONS
900-TON HYDRAULIC CRANE TRANSPORTING AND ASSEMBLING REQUIREMENT
900-TON HYDRAULIC CRANE SHIPPING LIMITATIONS
LIEBHERR LTM 1750 9.1 HYDRAULIC 900 TON CRANE SPACING
- Front Bumper to 1st Axle - 104" (8'11")
- 1st Axle to 2nd Axle - 63" (5'3)
- 2nd Axle to 3rd Axle - 63" (5'3")
- 3rd Axle to 4th Axle - 85" (7'1")
- 4th Axle to 5th Axle - 63" (5'3")
- 5th Axle to 6th Axle - 65" (5'5")
- 6th Axle to 7th Axle - 133" (11'1")
- 7th Axle to 8th Axle - 134" (11'2")
- 8th Axle to 9th Axle - 63" (5'3")
- 9th Axle to Rear Bumper - 51" (4'3")
OPERATING ON ROAD DIMENSIONS
- Height - 157" (13'1")
- Width - 122" (10'2")
- Length - 856" (71'4")
JOBSITE DRIVING TOTAL WEIGHT - 308,000 lbs.
JOBSITE DRIVING WITHOUT PARTS OR ACCESSORIES:
- OPTION #1 - Without Rear Stabilizers Arm and Wings - 238,000 lbs.
- OPTION #2 - Option#1 + No Front Stabilizers Arms - 216,000 lbs.
- OPTION #3 - Option#1 + Option #2 + No Boom and Hook Block - 139,000 lbs.
- OPTION #4 - Option #1 + Option #2 + Option #3 + No Hydraulic Piston - 128,000 lbs.
LIEBHERR LTM 1750 9.1 HYDRAULIC CRANE OPTIMIZED FOR TRANSPORTATION
Crane Body Height
- Height Without Boom - 133" (13'1")
- Height Without Crane Operating Cab and Arm - 116" (9'8")
Boom - 77,000 lbs. (L x W x H)
(2) Hydraulic Pistons - 11,000 lbs. (L x W x H)
Luffing Jib 203' Total
- (1) F-20 Luffing Jib Part - 0.0 lbs. (20'L x 7'7"W x 5'11"H)
- (11) TF-Adapter Jib Parts - 0.0 lbs. (11'6"L x 7'7"W x 5'11")
Auxiliary Jib 320' Total
- (7) 47'7"L x 7'7"W x 5'11"
FOLDING OUTRIGGERS FRONT WITH COUNTERWEIGHT
- Amount - 2
- Total Weight - 59,515 lbs.
FOLDING OUTRIGGERS REAR WITH COUNTERWEIGHT
- Dimensions - 7'2" Width x 7'5" Height
- Amount - 2
- Total Weight - 59,515 lbs.
BASE PLATE w/ERECTION PLATFORM
- Dimensions - 23'6" Length x 7'10" Width x 3'4" Height
- Amount - 1
- Total Weight -25,575 lbs.
BALLAST FRAME WITH WINCH 2, WINCH 3, ADJUSTMENT BLOCK AND ENGINE
- Dimensions - 13'8 Length x 9'7" Width x 9'7" Height
- Amount - 1
- Total Weight - 52,030 lbs.
COUNTER WEIGHTS
- Amount - 22
- Total Weight - 449,700 lbs.
900-TON HYDRAULIC CRANE SHIPPING PARTS
900-TON HYDRAULIC CRANE SHIPPING LIMITATIONS
FOLDING OUTRIGGERS FRONT WITH COUNTERWEIGHT
- Amount - 2
- Total Weight - 59,515 lbs.
FOLDING OUTRIGGERS REAR WITH COUNTERWEIGHT
- Dimensions - 7'2" Width x 7'5" Height
- Amount - 2
- Total Weight - 59,515 lbs.
BASE PLATE w/ERECTION PLATFORM
- Dimensions - 23'6" Length x 7'10" Width x 3'4" Height
- Amount - 1
- Total Weight -25,575 lbs.
BALLAST FRAME WITH WINCH 2, WINCH 3, ADJUSTMENT BLOCK AND ENGINE
- Dimensions - 13'8 Length x 9'7" Width x 9'7" Height
- Amount - 1
- Total Weight - 52,030 lbs.
COUNTER WEIGHTS
- Amount - 22
- Total Weight - 449,700 lbs.
CRANE BODY TRANSPORT DIVISION
- Handling Division - Superload Division
- Trailer Transporting - Cozad 110-Ton Lowboy
CRANE BOOM TRANSPORT DIVISION
- Handling Division - Specialized Division
- Trailer Transporting - XL Specialized HDE 110 Extend-a-Trac with Rear Steering
CRANE FEONT OUTRIGGERS & COUNTERWEIGHT DIVISION
- Handling Division - General Freight Division
- Trailer Mac MFG Trailer Tried Axle Step Deck
CRANE REAR OUTRIGGERS & CONTER WEIGHT DIVISION
- Handling Division - General Freight Division
- Trailer Mac MFG Trailer Tried Axle Step Deck
CRANE BASE PLATE W/ERECTION PLATFORM DIVISION
- Handling Division - General Freight Division
- Trailer Mac MFG Trailer Tried Axle Step Deck
CRANE BALLAST FRAMEW/WINCH#2 AND WINCH#3 ADJUSTMENT BLOCK& ENGINE
- Handling Division - General Freight Division
- Trailer Landoll 455B Traveling Axle Tridem Axle Trailer
HYDRAULIC CRANE TRANSPORT DIRECTIONS FROM PORT NEWARK, NJ TO 3047 BASS LANDING ROAD IN EDENTON, NORTH CAROLINA
Round Trip Amount - 2
- One Way Mileage - Not Known
- Driving Hours - 5 Hours One Way
- Days to Complete - 0.0 Days
- Hours to Complete - 0.0 Operating Hours
- Total Mileage - 0.0 Miles
- Payout - $0.0 to Delivering Carrier
- Hourly Rate - $0.00 per Hour of Service
- Daily Rate - $0.00
Ballast Frame with Winch#2, Winch#3 Adjustment Block and Engine for Liebherr LTM1750-9.1 Hydraulic Crane
SHIPMENT
JOBSITE DRIVING WITHOUT PARTS OR ACCESSORIES:
- OPTION #4 - Option #1 + Option #2 + Option #3 + No Hydraulic Piston - 128,000 lbs.
LIEBHERR LTM 1750 9.1 HYDRAULIC CRANE OPTIMIZED FOR TRANSPORTATION
Crane Body Height
- Height Without Boom - 133" (13'1")
- Height Without Crane Operating Cab and Arm - 116" (9'8")
Boom - 77,000 lbs. (L x W x H)
Trailer Request - Faymonville Street Max. FBX 11' Deck Height w/Interchangeable Decks
- Amount of Trips- 1
Hydraulic Piston for Liebherr LTM1750-9.1 Hydraulic Crane
SHIPMENT
JOBSITE DRIVING WITHOUT PARTS OR ACCESSORIES:
JOBSITE DRIVING WITHOUT PARTS OR ACCESSORIES:
- OPTION #2 - Option#1 + No Front Stabilizers Arms - 216,000 lbs.
LIEBHERR LTM 1750 9.1 HYDRAULIC CRANE OPTIMIZED FOR TRANSPORTATION
Crane Body Height
- Height Without Boom - 133" (13'1")
- Height Without Crane Operating Cab and Arm - 116" (9'8")
Boom - 77,000 lbs. (L x W x H)
Hydraulic Piston for Liebherr LTM1750-9.1 Hydraulic Crane
SHIPMENT
BASE PLATE w/ERECTION PLATFORM
- Dimensions - 23'6" Length x 7'10" Width x 3'4" Height
- Amount - 1
- Weight -25,575 lbs..
Trailer Request - XL Specialized xl110 HDE Extend-A-Trac Mini Deck
- Amount of Trips- 1
GENERAL FREIGHT TRACTOR SHIPPING LIMITATIONS
GENERAL FREIGHT SHIPPING LIMITATIONS DUE TO OUR EQUIPMENT INVENTORY
HOW MUCH WEIGHT ARE YOU AIMING AT AS A RANDOM MOVE FOR GENERAL FREIGHT TRACTOR SETUP
TANDEM AXLE TRACTOR - 52,000 lbs. (52k GVWR)
Spread Axle Trailer - 52k +48k = 100,000 lbs. GVCWR (20k Permits per Axle)
- Max. Weight to Stay Under 80,000 lbs. - 48,000 lbs.
- Max. Shipment Weight Under Max. Permit Axle - 68,000 lbs.
- Max. Tare Weight for the Spread Axle Trailer - 12,000 lbs.
- Max. Tare Weight for the Tractor - 20,000 lbs.
- Purpose - Counterweight for Crane and Luffing Jib Parts - Then Leased to N.J.R. Logistics Group Brokering Division
Tridem Axle Trailer - 52k +68k = 120,000 lbs. GVCWR (20k Permits per Axle)
- Max. Weight to Stay Under 80,000 lbs. - 42,500 lbs.
- Max. Shipment Weight Under Max. Permit Axle - 82,500 lbs.
- Max. Tare Weight for the Tridem Axle Trailer - 15,000 lbs.
- Max. Tare Weight for the Tractor - 22,500 lbs.
- Purpose - Counterweight for Crane and Luffing Jib Parts - Then Leased to N.J.R. Logistics Group Brokering Division
Quad Axle Trailer -- 52k +88k = 140,000 lbs. GVCWR (20k Permits per Axle)
- Max. Weight to Stay Under 80,000 lbs. - 29,500 lbs.
- Max. Shipment Weight Under Max. Permit Axle - 89,500 lbs.
- Max. Tare Weight for the Quad Axle Trailer - 28,000 lbs.
- Max. Tare Weight for the Tractor - 22,500 lbs.
- Purpose - Counterweight for Crane and Luffing Jib Parts - Then Leased to N.J.R. Logistics Group Brokering Division
LANES
- Coast to Coast
- Preferred Route of Travel From
- Anywhere in Lower 48 States and Southern Canada
CONTRACTS
- N.J.R. Logistics Group
- JOBSITE DRIVING WITHOUT PARTS OR ACCESSORIES - We chosen a Tandem Axle Tractor for our General Freight Setup It is better for both parties that we choose OPTION #4
- This division is not designed at weight as our structure. The wheelbase of the crane brings concentration and my full attention. We would required to obtain 71'deck length
- We can not equipped to handle this shipment as the crane body carrier not in General Freight Division
- We would like to have counterweight and luffing jib parts through
900-TON HYDRAULIC CRANE SHIPPING LIMITATIONS
LIEBHERR LTM 1750 9.1 HYDRAULIC 900 TON CRANE SPACING
- Front Bumper to 1st Axle - 104" (8'11")
- 1st Axle to 2nd Axle - 63" (5'3)
- 2nd Axle to 3rd Axle - 63" (5'3")
- 3rd Axle to 4th Axle - 85" (7'1")
- 4th Axle to 5th Axle - 63" (5'3")
- 5th Axle to 6th Axle - 65" (5'5")
- 6th Axle to 7th Axle - 133" (11'1")
- 7th Axle to 8th Axle - 134" (11'2")
- 8th Axle to 9th Axle - 63" (5'3")
- 9th Axle to Rear Bumper - 51" (4'3")
OPERATING ON ROAD DIMENSIONS
- Height - 157" (13'1")
- Width - 122" (10'2")
- Length - 856" (71'4")
JOBSITE DRIVING TOTAL WEIGHT - 308,000 lbs.
JOBSITE DRIVING WITHOUT PARTS OR ACCESSORIES:
- OPTION #1 - Without Rear Stabilizers Arm and Wings - 238,000 lbs.
- OPTION #2 - Option#1 + No Front Stabilizers Arms - 216,000 lbs.
- OPTION #3 - Option#1 + Option #2 + No Boom and Hook Block - 139,000 lbs.
- OPTION #4 - Option #1 + Option #2 + Option #3 + No Hydraulic Piston - 128,000 lbs.
EQUIPMENT OR WEIGHT CLASS MACHINERY
HOW MANY AXLES ARE YOU AIMING AT AS A HYDRAULIC CRANE TRANSPORTER?
Tandem Axle Tractor w/All Aluminum Step Deck Tridem Axle is General Freight Equipment meaning only 13.5k steer + 40k drives + 40k split axles = 93,000 ÷ 5 Axles = 18,600 lbs. per axle
- Some States Allow 25k Single Axles on trailer = 50k trailer
- Some States allow 46k Drives
- Total without Steer - 96k
- A 20k Steer will allow 115k in some states
EQUIPMENT OR WEIGHT CLASS MACHINERY
Liebherr LTM1750 - Entire Crane and Parts Shipping Requirements
- Operation Weight - 238,100 lbs.
- Counter Weights - 449,700 lbs.
- Total Weight To Move - 687,800 lbs..
- Total Axles Required - 50
TRAILER PREFEERED FOR GENERAL FREIGHT SHIPPING - Mac Trailer MFG 48' x 102" Tridem Step Deck w/36" Deck Height & Ramp Kit)
- Shipment Capacity - 57,750 lbs.
- Deck Height - 36"
- Lower Deck Length - 37"
- Kingpin Setting - 24"
CUBIC FEET OF CAPACITY WITHOUT HEIGHT PERMITS OR POLE CAR
- Cubic Inches - 7,951,512 cu. inches
- Cubic Feet - 4,563 cu. feet
- Cubic Yards - 169 cu. yards
- Max. PSI Rating - 47 lbs. PSI
MAX. PERMIT AXLE
- Avg. Axle permit - 19k
- No Leeway Allowed
GENERAL FREIGHT DIRECTIONS TO 3047 BASS LANDING ROAD IN EDENTON, NORTH CAROLINA
Round Trip Amount - 13
- One Way Mileage - 422
- Driving Hours - 7 Hours One Way
- Days to Complete - 22 Days
- Hours to Complete - 308 Operating Hours
- Total Mileage - 10,972 Miles
- Payout - $35,573.46 to Delivering Carrier
- Hourly Rate - $115.49 per Hour of Service
- Daily Rate - $1,616.97
ROUTE PLAN REQUIREMENTS SEND TO STRUCTURAL ENGINEER FOR APPROVAL
- Total Length - 71.65'
- Total Width - 8.5'
- Total Height - 140" Shipment (Stacks 12')
- Total Weight - 89,365 lbs.
- Total Axles - 5 Axles
- Total Axles Spacing - 798" (66.5')
- Weight Per Foot (Axle Spacing) - 1,343.8 lbs. per foot
- Axle Permit Requirement - 18,000 lbs. per axle
- Spacing Between Axle Group - 16' Spacing
- Spacing for DOT Requirement - 22,153 lbs. between Axle Group @ 16' Spacing
- Min. Bridge Crossing Between Axles - 35,998 lbs.
- Intersection Requirement - 27' x 27' Intersection Box
- Bridge Side Columns & Utility Poles Distance Away From Road - @ 12' Tall I Need Utility Poles & Bridge Columns 18" Off Edge of Road
DIRECTIONS FOR FUEL REBATES:
- Depart Port Newark to Interstate- 78 West (Newark, NJ)
- Interstate-78 West for Sea Port (Bridgewater, NJ)
- Take Interstate-278 South (Edison, NJ)
- Take U.S. Route-1 South (Lawrenceville, NJ)
- Take Interstate-295 South (Wilmington, DE)
- Take U.S. Route-13 South (Laurel, DE - Oasis Travel Plaza - Fuel Rebates)
- Take U.S. Route-13 South (Norfolk, VA)
- Take U.S. Route-17 South (South Mills, NC)
- Make Right Unto Turnpike Road (Whitestone, NC)
- Make Left Unto Sandy Cross Road (Belvidere, NC)
- Make Right Unto Bay Branch Road (Belvidere, NC)
- Make Right Unto Drinking Hole Road NC-Route-37 (Ryland, NC)
- Continue on Ryland Rd (Tyner, NC)
- Make Left unto Virginia Road NC Route-32 (Arrowhead Beach, NC)
- Make Right unto Rocky Hock Road (Arrowhead Beach, NC)
- Continue on River Road (Rockyhock, NC)
- Make Left unto Rocky Hock Landing Road (Edenton, NC)
- Make Right unto Sandy Wood Lane (Edenton, NC)
- Make Left unto Bass Landing Road (Arrive at 3047 Bass Landing Road on left)
Counter Weight for Liebherr LTM1750-9.1 Hydraulic Crane
SHIPMENT
Counter Weight for Liebherr LTM1750-9.1 Hydraulic Crane
Trailer Request - Extreme XP55 Flatbed
- Length: 9'10"
- Width - 8'
- Weight - 24,200 lbs. x 2 = 48,400 lbs.
- Amount Total - 20
Hydraulic Piston for Liebherr LTM1750-9.1 Hydraulic Crane
SHIPMENT
(2) Hydraulic Pistons for Liebherr LTM1750-9.1 Hydraulic Crane
Trailer Request - Extreme XP55 Flatbed
- Weight - 5,500 lbs. x 2 = 11,000 lbs.
- Amount Total - 2
SHIPMENT
BASE PLATE w/ERECTION PLATFORM
- Dimensions - 23'6" Length x 7'10" Width x 3'4" Height
- Amount - 1
- Weight -25,575 lbs.
Folding Outriggers for Liebherr LTM1750-9.1 Hydraulic Crane
SHIPMENT
FOLDING OUTRIGGERS FRONT WITH COUNTERWEIGHT
- Amount - 2
- Total Weight - 59,515 lbs.
SHIPMENT
FOLDING OUTRIGGERS REAR WITH COUNTERWEIGHT
- Dimensions - 7'2" Width x 7'5" Height
- Amount - 2
- Total Weight - 59,515 lbs.
HYDRAULIC CRANE TRANSPORT DIRECTIONS FROM PORT NEWARK, NJ TO 3047 BASS LANDING ROAD IN EDENTON, NORTH CAROLINA
Round Trip Amount - 2
- One Way Mileage - Not Known
- Driving Hours - 5 Hours One Way
- Days to Complete - 0.0 Days
- Hours to Complete - 0.0 Operating Hours
- Total Mileage - 0.0 Miles
- Payout - $0.0 to Delivering Carrier
- Hourly Rate - $0.00 per Hour of Service
- Daily Rate - $0.00
Ballast Frame with Winch#2, Winch#3 Adjustment Block and Engine for Liebherr LTM1750-9.1 Hydraulic Crane
SHIPMENT
JOBSITE DRIVING WITHOUT PARTS OR ACCESSORIES:
- OPTION #4 - Option #1 + Option #2 + Option #3 + No Hydraulic Piston - 128,000 lbs.
LIEBHERR LTM 1750 9.1 HYDRAULIC CRANE OPTIMIZED FOR TRANSPORTATION
Crane Body Height
- Height Without Boom - 133" (13'1")
- Height Without Crane Operating Cab and Arm - 116" (9'8")
Boom - 77,000 lbs. (L x W x H)
Trailer Request - Faymonville Street Max. FBX 11' Deck Height w/Interchangeable Decks
- Amount of Trips- 1
Hydraulic Piston for Liebherr LTM1750-9.1 Hydraulic Crane
SHIPMENT
JOBSITE DRIVING WITHOUT PARTS OR ACCESSORIES:
JOBSITE DRIVING WITHOUT PARTS OR ACCESSORIES:
- OPTION #2 - Option#1 + No Front Stabilizers Arms - 216,000 lbs.
LIEBHERR LTM 1750 9.1 HYDRAULIC CRANE OPTIMIZED FOR TRANSPORTATION
Crane Body Height
- Height Without Boom - 133" (13'1")
- Height Without Crane Operating Cab and Arm - 116" (9'8")
Boom - 77,000 lbs. (L x W x H)
Hydraulic Piston for Liebherr LTM1750-9.1 Hydraulic Crane
SHIPMENT
BASE PLATE w/ERECTION PLATFORM
- Dimensions - 23'6" Length x 7'10" Width x 3'4" Height
- Amount - 1
- Weight -25,575 lbs..
Trailer Request - XL Specialized xl110 HDE Extend-A-Trac Mini Deck
- Amount of Trips- 1
SPECIALIZED TRANSPORT DIRECTIONS TO 3047 BASS LANDING ROAD IN EDENTON, NORTH CAROLINA
Round Trip Amount - 12
- One Way Mileage - 422
- Driving Hours - 7 Hours One Way
- Days to Complete - 21 Days
- Hours to Complete - 294 Operating Hours
- Total Mileage - 10,128 Miles
- Payout - $32,837.04 to Delivering Carrier
- Hourly Rate - $111.69 per Hour of Service
- Daily Rate - $1,563.66
ROUTE PLAN REQUIREMENTS SEND TO STRUCTURAL ENGINEER FOR APPROVAL
- Total Length - 90.5'
- Total Width - 8.5'
- Total Height - 111" Shipment (Stacks 12')
- Total Weight - 73,342 lbs.
- Total Axles - 7 Axles
- Total Axles Spacing - 1,025" (85.4')
- Weight Per Foot (Axle Spacing) - 810 lbs. per foot
- Axle Permit Requirement - 11,000 lbs. per axle
- Spacing Between Axle Group - 28' Spacing
- Spacing for DOT Requirement - 34,468 lbs. between Axle Group @ 28' Spacing
- Min. Bridge Crossing Between Axles - 46,778 lbs.
- Intersection Requirement - 46'' x 46' Intersection Box
- Bridge Side Columns & Utility Poles Distance Away From Road - @ 12' Tall I Need Utility Poles & Bridge Columns 18" Off Edge of Road
DIRECTIONS FOR FUEL REBATES:
- Depart Port Newark to Interstate- 78 West (Newark, NJ)
- Interstate-78 West for Sea Port (Bridgewater, NJ)
- Take Interstate-278 South (Edison, NJ)
- Take U.S. Route-1 South (Lawrenceville, NJ)
- Take Interstate-295 South (Wilmington, DE)
- Take U.S. Route-13 South (Laurel, DE - Oasis Travel Plaza - Fuel Rebates)
- Take U.S. Route-13 South (Norfolk, VA)
- Take U.S. Route-17 South (South Mills, NC)
- Make Right Unto Turnpike Road (Whitestone, NC)
- Make Left Unto Sandy Cross Road (Belvidere, NC)
- Make Right Unto Bay Branch Road (Belvidere, NC)
- Make Right Unto Drinking Hole Road NC-Route-37 (Ryland, NC)
- Continue on Ryland Rd (Tyner, NC)
- Make Left unto Virginia Road NC Route-32 (Arrowhead Beach, NC)
- Make Right unto Rocky Hock Road (Arrowhead Beach, NC)
- Continue on River Road (Rockyhock, NC)
- Make Left unto Rocky Hock Landing Road (Edenton, NC)
- Make Right unto Sandy Wood Lane (Edenton, NC)
- Make Left unto Bass Landing Road (Arrive at 3047 Bass Landing Road on left)
Luffing Jib for Liebherr LTM1750-9.1 Hydraulic Crane
SHIPMENT
Luffing Jib 203' Total
- (1) F-20 Luffing Jib Part - 5,000 lbs. (20'L x 7'7"W x 5'11"H)
SHIPMENT
- (11) TF-Adapter Jib Parts -55,000 lbs. (11'6"L x 7'7"W x 5'11")
Trailer Request - XL Specialized xl110 HDE Extend-A-Trac Mini Deck
- Amount of Trips- 4
Hydraulic Piston for Liebherr LTM1750-9.1 Hydraulic Crane
SHIPMENT
Auxiliary Jib 320' Total
- (7) 47'7"L x 7'7"W x 5'11"
Trailer Request - Extreme XP55 Flatbed
- Weight - 5,000 lbs. x 7 = 35,000 lbs.
Trailer Request - XL Specialized xl110 HDE Extend-A-Trac Mini Deck
- Amount of Trips- 7
Hydraulic Piston for Liebherr LTM1750-9.1 Hydraulic Crane
SHIPMENT
BASE PLATE w/ERECTION PLATFORM
- Dimensions - 23'6" Length x 7'10" Width x 3'4" Height
- Amount - 1
- Weight -25,575 lbs..
Trailer Request - XL Specialized xl110 HDE Extend-A-Trac Mini Deck
- Amount of Trips- 1
